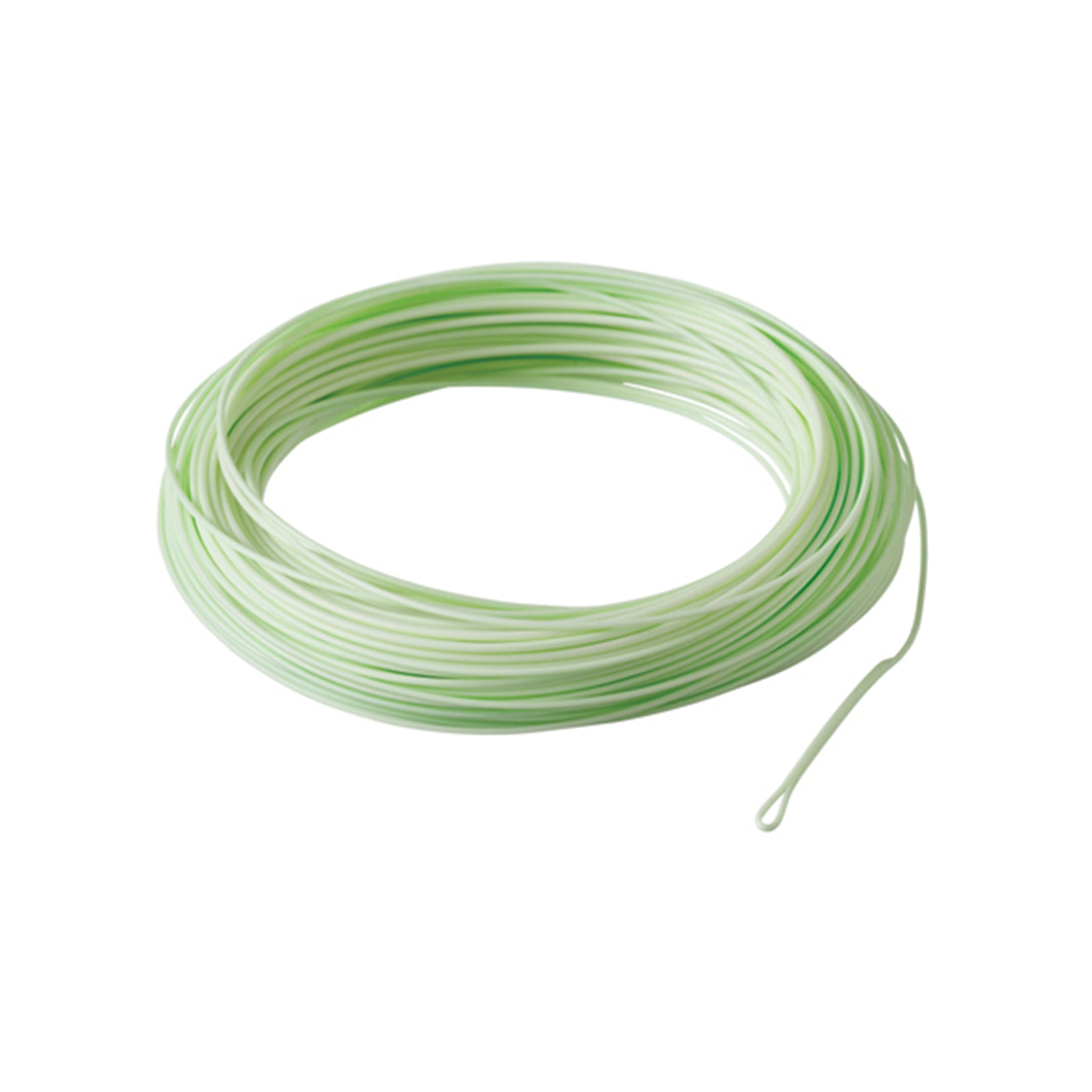

Back from the dead! We've got a limited run of the highly sought after RIO Classic Lumilux taper! The RIO Classic (including variations like the Lumilux floating line sold back-to-end with glowing night-fishing capabilities) featured a true-to-weight, standard-to-progressive trout taper before RIO transitioned their primary general-purpose lineup into the compound-tapered RIO Gold.
RIO Classic Lumilux Profile Component Breakdown
-
Tip (0.5 feet): Fine front end constructed with a standard factory loop to deliver subtle dry-fly presentations smoothly.
-
Front Taper (6.0 feet): A progressive, medium-length taper that transitions mass evenly to prevent loop hinging when throwing size #22 up to size #2 flies.
-
Main Belly (23.5 feet): A uniform, level section holding the maximum outside diameter (OD) and majority weight of the head. It provides a reliable load for moderate-to-fast action 6-weight fly rods at standard distances.
-
Rear Taper (6.0 feet): A continuous step-down slope directly connecting the thick belly to the running line. This is the primary geometric difference from the RIO Gold, which replaced this section with an extended, dual-stepped back taper.
-
Running Line (54.0 feet): A level, low-friction shooting section infused with the phosphorescent Lumilux matrix that glows in the dark for night-fishing clarity.
Vintage WF6F RIO Classic Lumilux Diagram
[0.5'] [6.0'] [23.5'] [6.0'] [54.0']
+----+ +----------+ +==================+ +----------+ +-------------------------+
| Tip| | Front | | Main Belly | | Rear | | Running Line |
| | | Taper | | (Uniform Max OD) | | Taper | | (Thin/Supple Coating) |
+----+ +----------+ +==================+ +----------+ +-------------------------+
|<------------------ 36-Foot Head Length ---------------->|<----- 54-Foot Run ----->|
|<---------------------------- Total Length: 90 Feet ------------------------------>|
RIO Classic vs. RIO Gold (WF6F Comparison)
| Specification Feature
|
Vintage RIO Classic / Lumilux
|
Modern RIO Gold (Lumalux Variant)
|
|
Total Head Length
|
36.0 feet (Standard)
|
48.0 feet (Extended)
|
|
Belly Design
|
Uniform level diameter
|
Complex compound dual-taper
|
|
Rear Taper Architecture
|
Short, standard 6-foot transition
|
Long, variable handling section
|
|
First 30ft Grain Weight
|
Target ~160 grains (True AFFTA 6wt)
|
Target ~168 grains (Slightly heavy-loaded) |
